A compact 8HP touch controller for expressive CV and 1V/Oct control

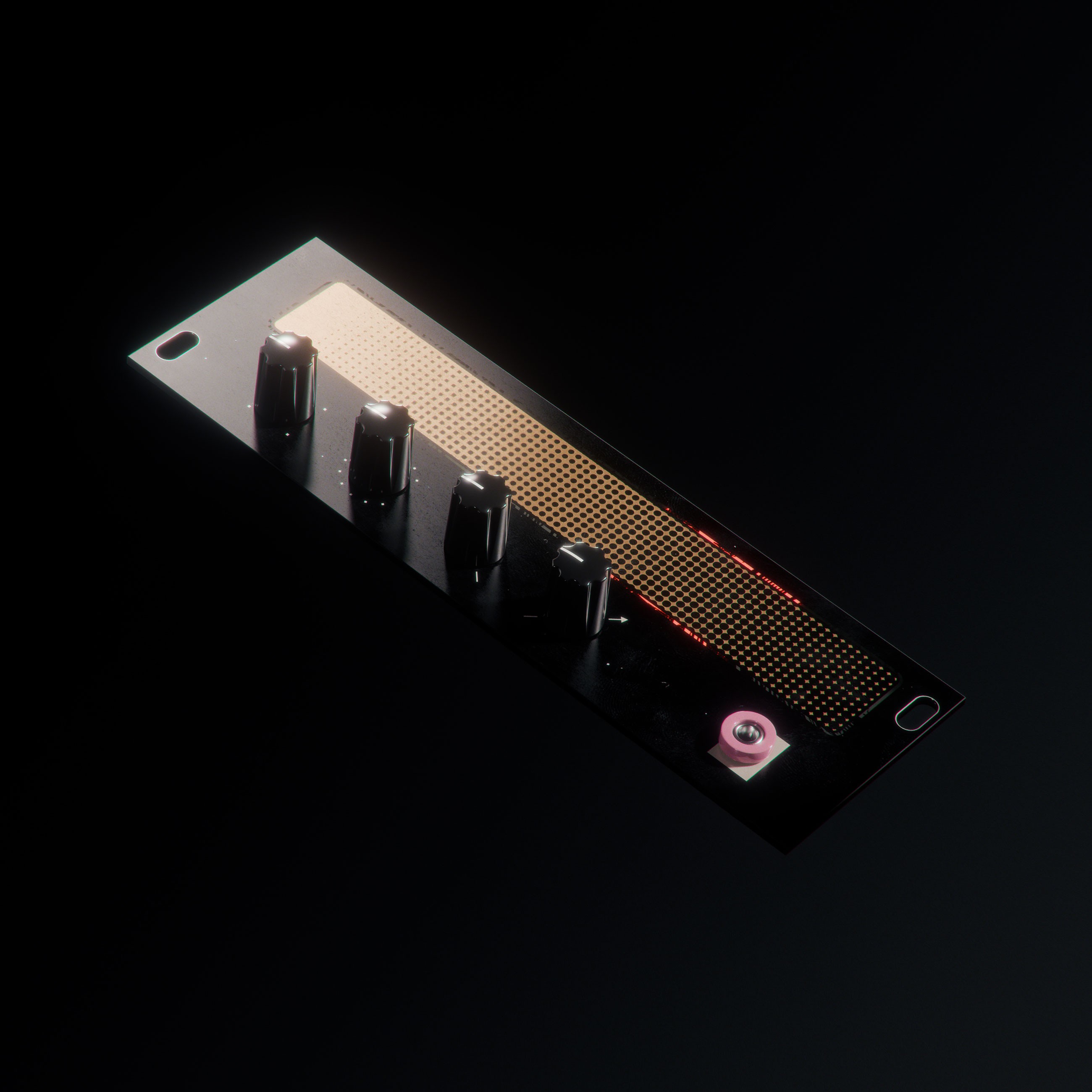

The [i] is a 8HP Eurorack CV controller built on the Electrosmith Daisy Seed and programmed in C++ for precision and low-latency performance. It combines tactile control with musical intelligence, making it a versatile source of melodic or modulation CV.
The [i] is a 8HP Eurorack CV controller built on the Electrosmith Daisy Seed and programmed in C++ for precision and low-latency performance. It combines tactile control with musical intelligence, making it a versatile source of melodic or modulation CV.
At its core is a 12-point capacitive touch strip, allowing direct finger interaction to set pitch or CV values. Each touch position corresponds to a note or voltage step, with a clear LED display showing the active point in real time.
At its core is a 12-point capacitive touch strip, allowing direct finger interaction to set pitch or CV values. Each touch position corresponds to a note or voltage step, with a clear LED display showing the active point in real time.

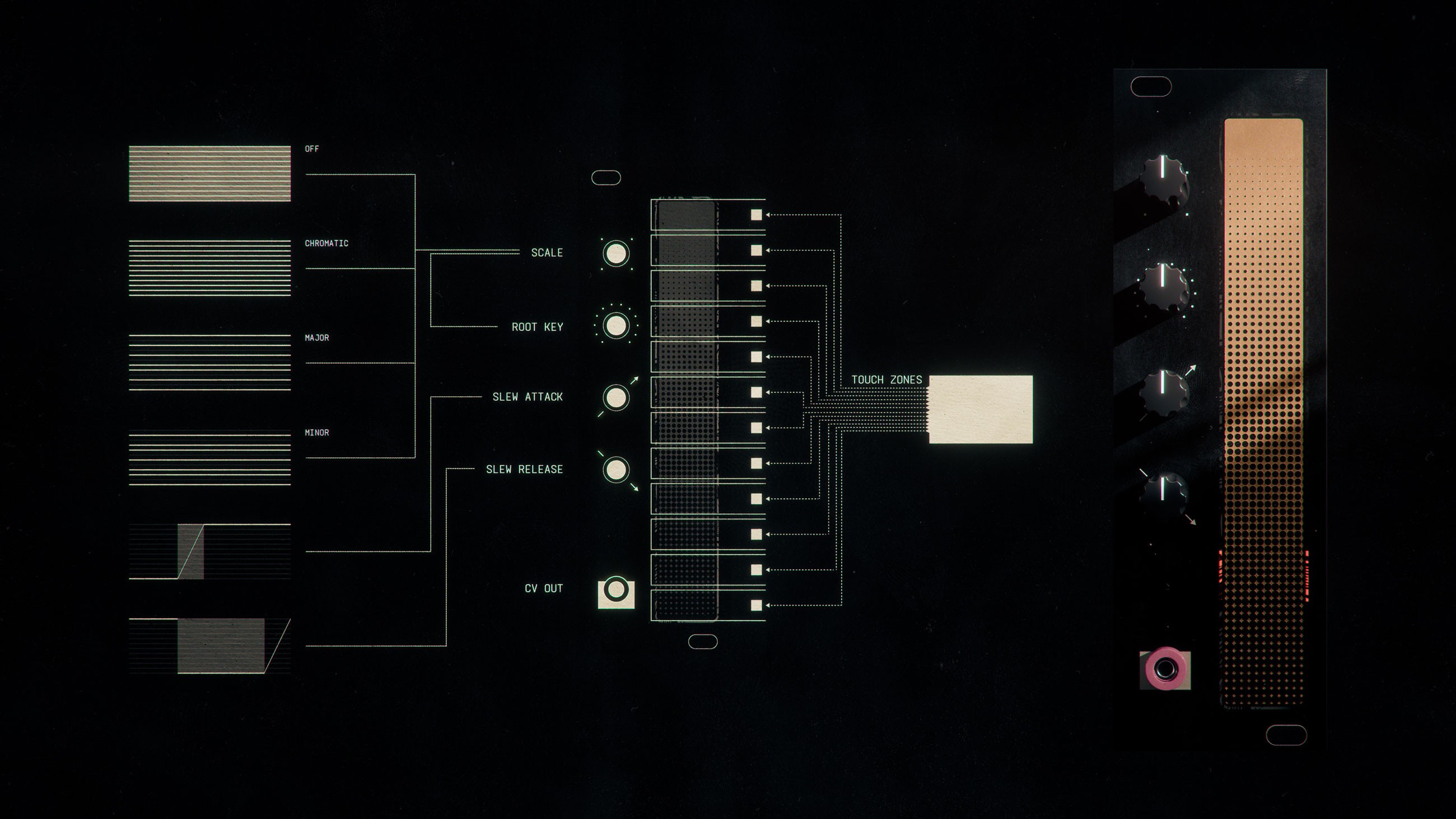

The module offers flexible output modes via the Scale knob:
Off (free CV mode): Outputs raw CV proportional to touch position.
Chromatic: Quantized to semitones across the octave.
Major / Minor: Quantized to diatonic scales, with Root Key selection via dedicated knob.
Off (free CV mode): Outputs raw CV proportional to touch position.
Chromatic: Quantized to semitones across the octave.
Major / Minor: Quantized to diatonic scales, with Root Key selection via dedicated knob.
To shape the output response, the Attack and Decay knobs provide slew limiting, transforming abrupt changes into expressive glides or envelopes.
To shape the output response, the Attack and Decay knobs provide slew limiting, transforming abrupt changes into expressive glides or envelopes.
Key Features:
12-point capacitive touch controller with LED feedback
Selectable output modes: CV, Chromatic, Major, Minor
Root key selection for scale quantization
Attack and Decay controls for slew/glide shaping
Switchable CV or 1V/Oct output for melodic integration
Compact 8HP format
12-point capacitive touch controller with LED feedback
Selectable output modes: CV, Chromatic, Major, Minor
Root key selection for scale quantization
Attack and Decay controls for slew/glide shaping
Switchable CV or 1V/Oct output for melodic integration
Compact 8HP format
The [i] bridges performance and control, functioning equally well as a melodic controller, modulation source, or experimental gesture interface.
The [i] bridges performance and control, functioning equally well as a melodic controller, modulation source, or experimental gesture interface.
Tech Specs
HP
8-Step Sequencer
- Up to 64 Steps
8
Depth
Controlled Pitch with
Random Mode
31mm
Power Consumption
Controlled Pitch with
Random Mode
+12V=58mA, -12V=60mA, +5V=0mA
